P4 Indoor Flexible LED Display Screen Front Service 960×720mm Simple Steel Cabinet

Brand Name : VW

Model Number : P4

Certification : EMC,CE,FCC,ROHS

Place of Origin : CN

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1100sqm/month

Delivery Time : 5-10 days

Packaging Details : flight case, plywood box

IP Rating : IP20

Gray Scale : 12 Bit

Pixel Pitch : 4mm

Driving Method : 1/15

Maintenance : Front service

Cabinet Dimension : 960×720mm

Installation Type : Mounting/Hanging

Viewing Angle : H:140°;V:140°

Contact Now

960×720mm Simple Steel Cabinet P4 Indoor Flexible LED Display Screen Front Service

Product Description:

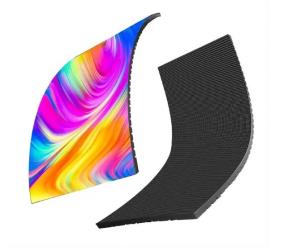

P4 Indoor Flexible LED Display Screen can fit the metal frame with different camber surfaces due to the soft characteristics of its PCB, thus realizing the LED display effect of curved surfaces. Different pictures and video content can be played, which makes the soft module very well applied in creative design and urban beautification.

Product Quick Details:

  • Space-saving compact design saves space and labor costs;
  • Flexible features, easy installation and adaptable to different building structures;
  • Highly customizable features with a wide range of customization options for size, shape, and pixel pitch;
  • Highly maneuverable - easy to install, dismantle, fold, store and transport.

Features:

  • Flexible:Soft pcb design, can be curved, flexible installation
  • Curved:Curved angle from 110° to 180°, inner and outer curved
  • Multi-shapes available:Flexible modules work for round, convex, concave, s shapes and other irregular shapes.
  • Magnetic front service:Completely front service with magnets on the modules. Safety rope can be added to the module for hanging or high installation position.

Technical Parameters:

Technical Parameters Flexible LED Display Screen
Pixel Pitch: 4 mm
LED Type: SMD2121
Cabinet Dimension: 960×720mm
Module Size: 240x120 mm
Cabinet Weight: 19kg
Cabinet Material: Simple Steel
Driving Type: 1/15
Brightness: 800-1000nits
Max/Avg Power: 800/280 W/m2
Maintenance: Front service
IP Rating: IP20
Refresh Rate: >1920 Hz
Installation Type: Mounting/Hanging
Gray Scale: 12 bit
Viewing Angle: H:140°;V:140°
Operational Temp: -20℃~+50℃
Operational Humidity: 10%~90% RH

Case:

P4 Indoor Flexible LED Display Screen Front Service 960×720mm Simple Steel CabinetP4 Indoor Flexible LED Display Screen Front Service 960×720mm Simple Steel CabinetP4 Indoor Flexible LED Display Screen Front Service 960×720mm Simple Steel Cabinet

FAQ:

Q1. How can I place an order?
A1:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, incase of any delays.

Q2. What kind of display we provide?
We have indoor/outdoor/rental taxi top /mobile LED display/LED stage/Irregular LED display for you choose.


Q3. Are you manufacturer of LED display. If yes, in which city?
A3:Yes, Our factory with 2000 square meters. And we're in SHENZHEN city, GUANGDONG Province.

Q4. How long can I get the goods?

A4:Our produce time is about 10-25 working days. When you confirmed the order, we can start production after receiving your deposit(30% TT in advance). We will update the production details in time. We will notice you that we can delivery the goods to you after we get full payment.

Q5. May I know the package details?

A5:For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.

Q6. What is the payment method?
A6:We support a variety of payment methods, the most common is the TT.


Q7. What's the pixel pitch for Outdoor LED Display Screen?
A7:Outdoor (p3.91mm/p4.81/p5mm/P6mm/ p6.25 /p6.67/ P8mm/P10mm/p16mm/p20mm) LED display screen

Q8. Can it play HD video?
A8:Yes, it can realize HD video function with Linsn/nova controlling system

Q9. What's the controlling system?

A9Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun, TF, Colorlight, etc.

Q10. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1)?
A10:SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 LED chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens, it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.


Q11. What is your terms of delivery?
A11:We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
